Porting Buildroot to LicheePi 4A

In my previous blog post, I wrote about how I got the latest buildroot working on LicheePi 4a. In this post, lets dive deep into how you can add support for newer boards and upstream the patches.

I am assuming that you already have an idea about What is Buildroot? and How it works? So, lets directly jump into finding how to add support for newer boards.

Generating board’s defconfig

I will be referring to the LicheePi 4A BSP for supporting the examples.

First off, for writing the board’s defconfig you need to know a few things

NOTE The attempt in buildroot is to prefer mainline trees as compared to the forks.

Recently a lot of patches got upstreamed for TH1520 SoC, so we are free to use the mainline linux kernel tree for the minimal image. GPU/NPU drivers are still a work in progress and need to use the downstream vendor’s kernel for it.

For this BSP, I used the latest mainline kernel (v6.12) and vendor’s Uboot (v2020.01) and OpenSBI (v0.9) as these are yet to be upstreamed.

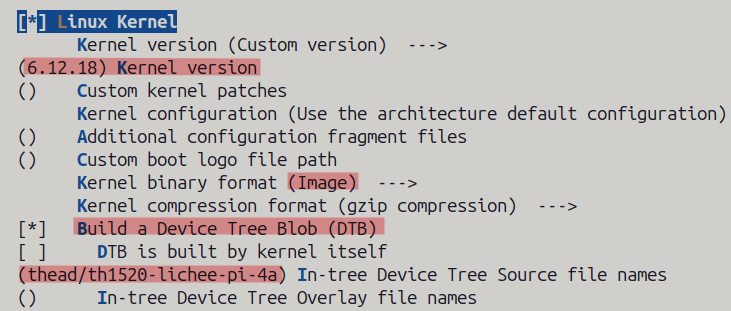

While generating the .config file via menuconfig, we need to select the kernel versions along with the defconfig and Device Tree Source file name.

kernel menuconfig

If you need to add some patches which are not there in the mainline kernel, you can add them by adding the BR2_LINUX_KERNEL_PATCH variable.

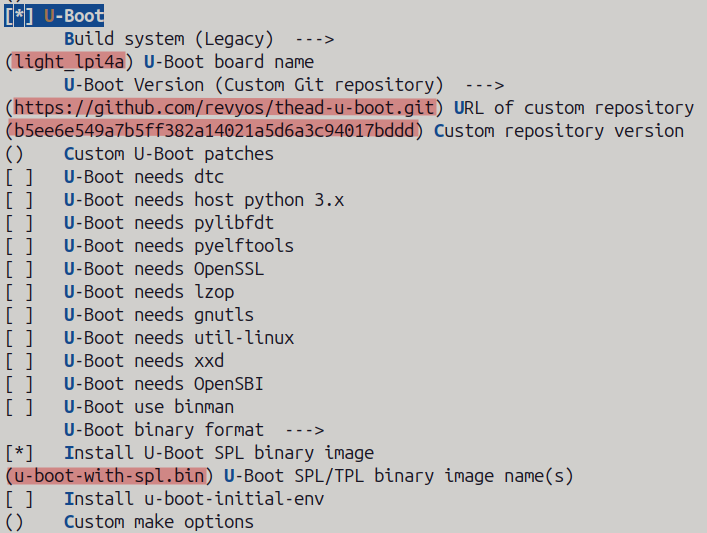

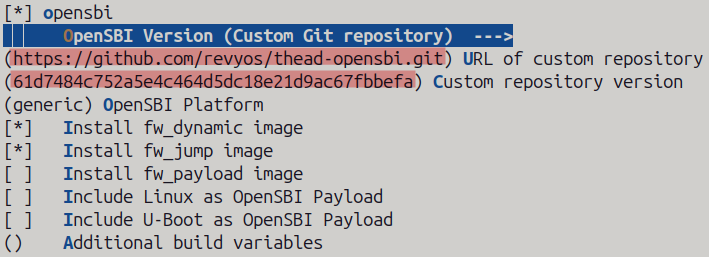

Similarly, we configure the OpenSBI and Uboot settings. When adding the board, we need to fix the repository version to a certain tag or commit hash. LicheePi 4a, requires the SPL uboot image.

opensbi menuconfig uboot menuconfig

Now our major part of the configuration is complete, now we will configure how these artefacts get installed and final image is generated.

NOTE LicheePi 4A has 3 partitions namely uboot, boot and root these are for the uboot SPL image, boot partition boot.ext4 and root partiton for rootfs.ext4.

To generate the ext4 filesystem we select the ext4 option from the filessytem images configuration tab.

Buildroot requires you to verify the hashes of all the files which it downloads while building the image. For this you need to create a global patch and hash directory which is usually inside your board’s directory. For me I created the directory as follows board/sipeed/licheepi_4a/patches this should have the hashes for linux, linux-headers, uboot, opensbi and any other packages which you need.

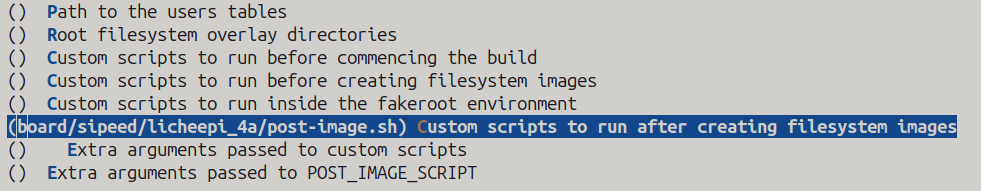

If you need to run some scripts at any stage of the build you can speficy them from the System Configruation settings. As in my case, I needed to run a script after creating the filesystem images.

post image script

Buildroot uses genimage.cfg which contains the output image layout that genimage utility uses to create the final image. Genimage is a tool used for generating multiple filesystem images. You can find more here. You have to add your genimage configuration file in the boards directory as per the partition layout.

For saving your defconfig you can run the command make savedefconfig BR2_DEFCONFIG=name this is your final defconfig, which can be used for building the image for your target.

Along with these configurations you need to add the board documentation as well. The documentation is in the asciidoc format.

While building the defconfig you should keep in mind that, you should only select the packages which are absolutely required for the board to boot and function properly.

Once, you get your new board working on buildroot, you should first do a build against the gitlab-CI docker container before sending the patches. You can start the docker container via utils/docker-run.

Adding custom packages

You might come to a point where, there are a few extra packages needed for the board to boot or function properly which are not a part of buildroot target packages. For me, there were a few binaries which were required to be added to the boot partition for the board to boot further. We can’t just add them in the boards directory and add them to the commits. You need to add such binaries in a separate package and select the package in the board’s defconfig.

To create a package, I created a directory named sipeed-lpi4abin and added the required files.

Every package consists of the following files

Once the package is ready you need to add the location of the newly created package’s Config.in file to the package/Config.in file.

DEVELOPERS file

You should add yourself to the DEVELOPERS file as the maintainer for the specific package or board’s defconfig so that you will be mailed whenever there is a patch being sent which modifies your package or defconfig.

Upstreaming our work

Before you start sending out to the mailing list… Mailing List? Yes, Buildroot also accepts contribution via the mailing list, just like the Linux Kernel.

You should create a really good commit message and it should explain what the commit is doing. The commits should be atomic. In my case, I added a package for the bins and the defconfig, I needed to create separate commits such that the package was added first then the board’s defconfig as the board’s defconfig depended on the package. You should have a signed off commit.

There are a few more guidelines regarding commit listed in the official docs.

Generating the patch series

Before generating the patch, you should first rebase your changes on top of the upstream tree, and check the coding style for your changes via the docker container

utils/docker-run make check-package

You should fix any errors and warnings before sending the patches out to the mailing list.

Once all the errors and warnings are gone, you can generate the patches via

git format-patch -M -n -s -o outgoing origin/master

NOTE If you need to create a coverletter as in my case, you can do so by supplying the --cover-letter option to the git format-patch command.

This will create the patches in the outgoing/ directory. You can now send these patches to the maintainer by running the output of the following command

./utils/get-developers outgoing/*

You should have git send-email installed on your host. You can monitor the feedback from the maintainers and revision the patch as per the feedback according to these guidelines.

The buildroot mailing list archive is at https://lore.kernel.org/buildroot.

References

Here are a few references from the buildroot documentation

Congratulations! You have finally contributed to buildroot!

Thanks for reading!
